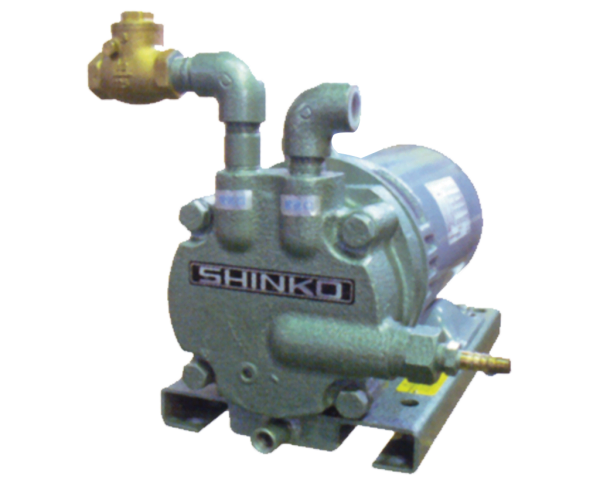

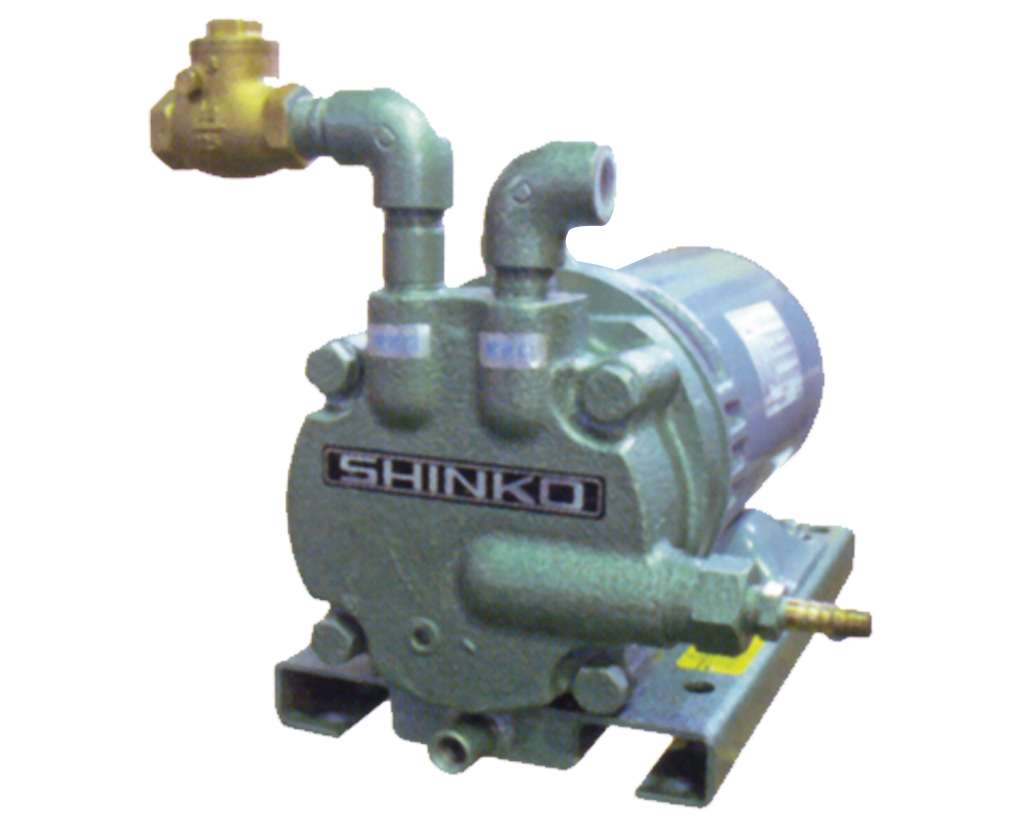

Shinko Seiki Water-Ring Vacuum Pump SW-S Series
Shinko Seiki Water Ring Vacuum Pump SW-S Series
SW-S Series
Single stage water-ring vacuum pump. Perfectly suitable for operation from atmospheric pressure to 8kPa.
Specification
| Model | Exhaust Speed L/min (m3/h) |
Ultimate pressure PA |
Motor kW | Water Supply L/min |
Suction Port Dia. |
Size D x W x H (mm) |
Weight kg |
||
|---|---|---|---|---|---|---|---|---|---|
| 50Hz | 60Hz | W.T.15ºC | W/SAE | ||||||
| SW-S7 | 90 (5.4) | 105 (6.3) | 6.7 | - | 0.4 | 4 | PT1/2 | 334 x 223 x 277 | 24 |
| SW-S15 | 250 (15) | 1970 (18) | 6.7 | - | 0.75 | 5 | PT1/2 | 363 x 240 x 353 | 24 |
