Operating features

The star impeller, grazing the pump head and the front cover, creates a suction pressure which allows the transferring of the liquid which goes, by the load port, from the inlet chamber to the discharge port and then to the outlet chamber.

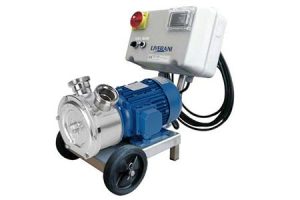

Liquid ring pumps, selfpriming and reversible, suitable for the transfer of clear liquids, without any solid parts in suspension. The pumps are available both made of stainless steel AISI 316 and bronze. According to the construction material the pumps find good applications in several fields: Oenological field and food processing (wine, must, vinegard, oil, fruit juice, bier, sirups and pickle), dairy field (milk, whey, etc.), chemical field (acids, solvents, photographic liquids, cleaning products, ink, etc.), agriculture field (anticryptogamics, liquid fertilizers, gas oil, etc.), nautic field (sea water, sweet water, gas oil, etc.).

  • Selfpriming, also with gas presence and in case of discontinuos flow of liquid
  • Reversible
  • Transferring without pulsation effect
  • Dry operating

  Liquid Ring Self Priming Pumps
